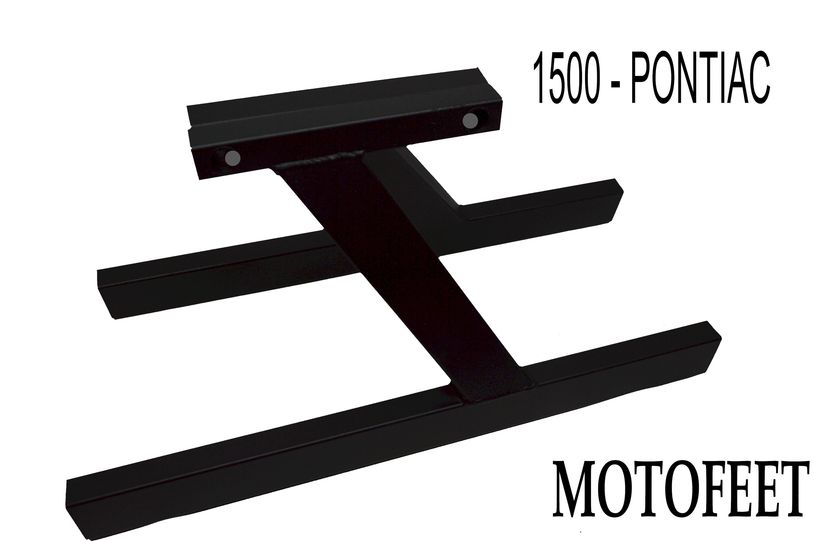

1500 PONTIAC

PART # 1500 WITHOUT CASTERS / PART # 1501 WITH CASTERS

The Pontiac V8 engines have varying mount styles, depending on the  engine. The Motofeet engine stand is designed to accommodate these  variations with a single part number. (see notes below and image below)


Engine Applications

 (engine size and years available):

Size .... Year(s)

265 ..... 1980-1981
287 .....          1955
301 ..... 1977-1981
326 .....1963-1967
347 .....          1957
350 ..... 1968-1977
366 .....           1970
370 .....           1958
389 ..... 1959-1966
400 ..... 1967-1979
421 ..... 1961-1966
428 ..... 1967-1969
455 ..... 1970-1976


The image below shows the available bolt patterns on Pontiac V8 engines. The Motofeet 1500 stand utilizes the #1 and #4 designated mounting holes


*** These stands WILL NOT fit for the 2 and 5 holes.



 That means that the Motofeet stand for Pontiac ALWAYS mounts to the #1 and #4 bolt holes shown in the image below, no matter what engine you have.


  • 1959-1969 Blocks have only (2) motor mount holes on each side of the block (see #2 & #5).  These blocks fit in most 1964-1974 Pontiac A-body chassis, except cars  originally equipped with a 455, which used a 3-bolt style mount.
  • 1970-1976 Blocks have all (5) bolts holes, but all five were not  always tapped. The additional holes were there to fit the 2nd generation  Firebird/Trans Am chassis. These blocks are very interchangeable and  will fit any 1959-1979 Pontiac V8 motor mounts.
  • 1977-1979 Blocks have only (3) motor mount holes (see #1, 3 & 4).

Pontiac Mount pattern

 Engine storage and transportation stand for Pontiac V8 engines.


 Features:

  • Sturdy Boxed Steel Alloy Construction
  • Mount plate is thick 1/4" steel with Pre-Drilled Holes to match your engine
  • Attractive and Durable Black Powder Coating
  • Easy to store when not in use
  • Bolts right to your engine mount pads on your engine block - attaches in minutes!
  • Strong enough to hold your complete engine AND transmission
  • Affordably Priced
  • Made in the USA

Use the Motofeet Engine Stand for:

  • Working on your engine
  • Engine Display or Storage
  • Shipping or Transportation

Who Needs This?

  • Engine Builders
  • Racers
  • Speed Shops
  • Merchandisers
  • Auto Recyclers (Salvage Yards)

Includes: One Pair stand legs (Optional Steel or OSHA approved Rubber Casters available).


  NOTES:

  • Every Motofeet stand features welded-in (3/8"-16) threaded inserts to allow easy mounting of optional casters.
  • If using the stand to transport an engine, it is recommended to  remove the casters and securely mount or strap the stand legs and engine  in place to prevent movement.
